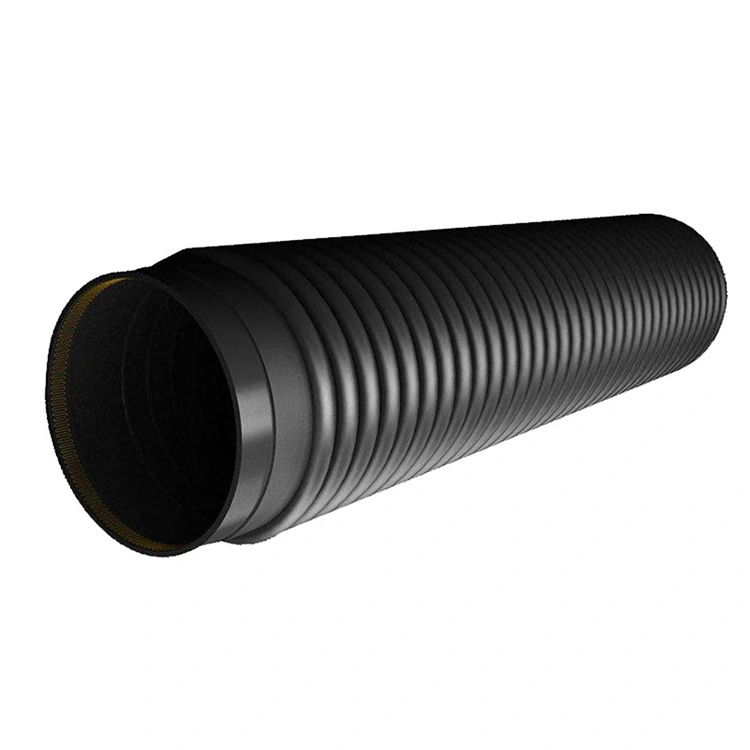

High-strength HDPE spirally wound reinforced carat pipe

The High-strength HDPE spirally wound reinforced carat pipe are produced by Eastboom®, a manufacturer specializing in the production of plastic pipeline systems. We possess excellent strength, long service life and stable performance, and are highly suitable for challenging applications such as chemical transportation, water supply networks and industrial drainage.

Send Inquiry

Product Description

Introduction

These High-strength HDPE spirally wound reinforced carat pipe are manufactured using a specialized stranded reinforcement technology, significantly enhancing their pressure rating and structural durability. Whether under high corrosive conditions or high pressure, they can operate smoothly and reliably, with high strength and extremely low water absorption rate, and have a service life of over 50 years.

Our pipeline design is applicable to a wide range of temperature conditions and we can also provide customized services. We can produce according to the dimensions provided by the customers. Therefore, it can meet the needs of numerous industries, municipal and chemical fields. All Eastboom® products comply with international certification standards, such as SGS, CE and ISO. We warmly welcome global cooperation opportunities and provide customized technical support - please contact us to discuss your project requirements or request a quotation.

Features and Applications

Features:

1.High Tensile Strength: Ranging from 30–40 MPa, providing dependable performance under high pressure and heavy loads.

2.Superior Corrosion Resistance: Handles corrosive media including acids, alkalis, and industrial wastewater.

3.Low Water Absorption: With a water absorption rate of less than 0.01%, these pipes offer high resistance to moisture damage and are highly effective at preventing blockages.

4.Temperature Resistant: The HDPE twisted reinforced carat pipe function consistently in temperatures from -40°C to 60°C without performance loss.

Applications:

1.Municipal Engineering:

2.Construction:

These pipes are specified for underground drainage systems, sewage mains, rainwater collection infrastructure, and building ventilation ductwork.

3.Electrical and Telecommunications:

4..Agriculture:

Double-wall corrugated (DWC) HDPE pipes are applied in irrigation and drainage systems for agricultural farmland and forestry.

5.Transportation:

They form critical components of subsurface drainage systems for railway and highway infrastructure.

6.Mining:

Within mining operations,HDPE twisted reinforced carat pipes are used for ventilation, compressed air supply, and dewatering drainage applications.

DN/ID	Min.Average Inner Diameter	Min Inner wall thickness
		Type A	Type B	Type C
		Type A	Type B	Type C
mm	mm	mm	mm	mm
150	145	1	1.3	1.3
200	195	1.1	1.5	1.5
250	245	1.5	1.8	1.8
300	294	1.7	2	2
400	392	2.3	2.5	2.5
450	441	2.8	2.8	2.8
500	490	3.0	3	3
600	588	3.5	3.5	3.5
700	673	4.1	4	4
800	785	4.5	4.5	4.5
900	885	5.0	5	5
1000	985	5.0	5	5
1100	1085	5.0	5	5
1200	1185	5.0	5	5
1300	1285	6.0	5	5
1400	1385	6.0	5	5
