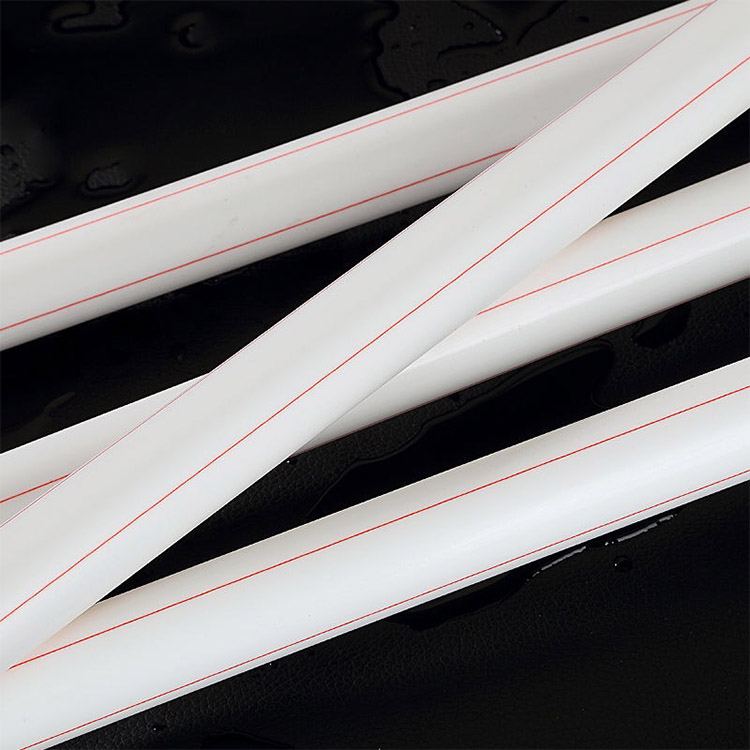

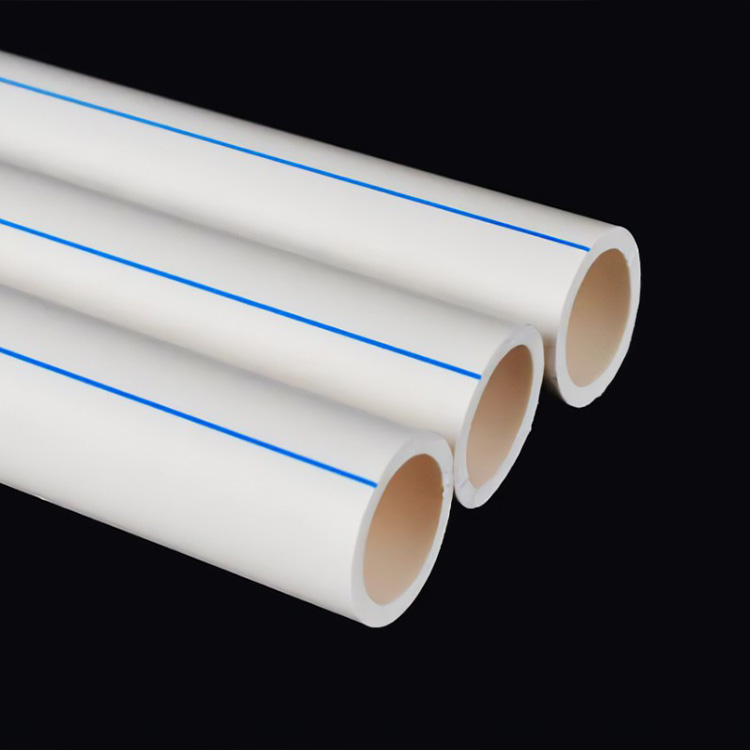

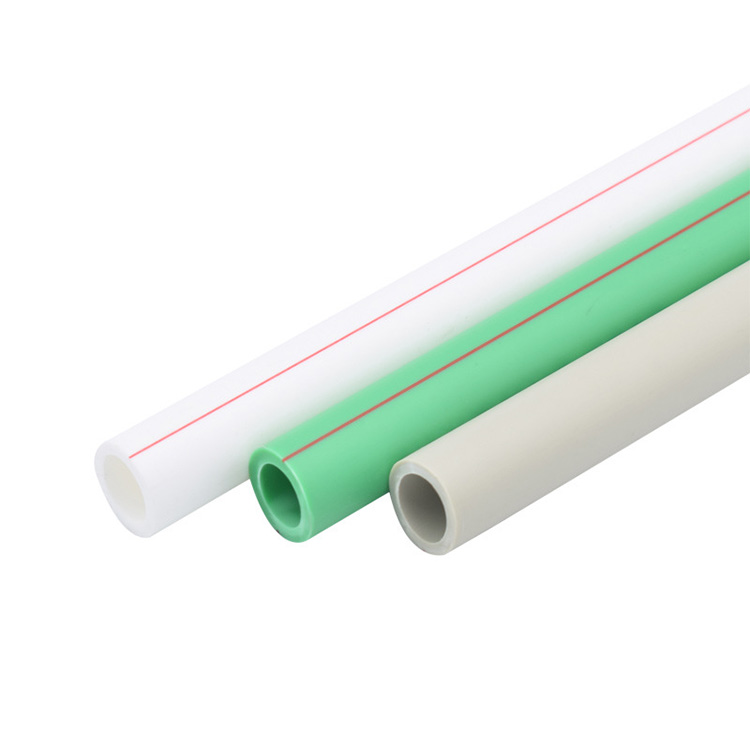

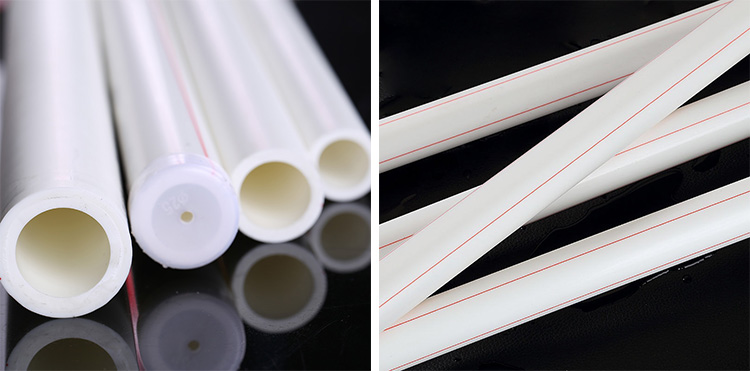

PPR Pipe for Hot and Cold Water
Eastboom® PPR Pipe for Hot and Cold Water factory provide durable piping for hot and cold water systems. Using certified food-grade materials, our pipes won't rust, clog, under pressure ,suite for upgrading home or outfitting a commercial building.
Send Inquiry
Product Description
PPR Pipe for Hot and Cold Water also known as Type III polypropylene pipe, offers advantages such as energy and material savings, environmental friendliness, lightweight and high strength, corrosion resistance, smooth inner walls that prevent scaling, ease of installation and maintenance, and a long service life. For over 23 years, Eastboom® has been helping global clients with high-quality PPR piping solutions from our ISO-certified factories in China.
Features:
1.100% Food-Grade PP-R Material
They are non-toxic and resistant to corrosion, which makes them safe to be used in drinking water systems. Over time, there will be no chemical leakage or scale accumulation.
2.Resistance to Heat and Pressure
PPR hot and cold water pipes are highly suitable for central heating systems as well as hot water supply networks.
3. Long Service Life and Simple Welding Process
4. Eco-Friendly and Recyclable
PPR pipes designed for hot and cold water are fully recyclable, which aligns with the concept of environmental protection.
Applications:
Our PPR pipes for both hot and cold water are extensively applied in multiple fields, including building water supply and drainage systems, water supply and drainage projects in urban and rural areas, industrial fluid conveyance, and agricultural irrigation. These application scenarios mainly cover the construction industry, municipal engineering, and industrial sector.
Product parameters
|
Dimension |
PP-R |
||||||
|
SDR11 |
SDR9 |
SDR7.4 |
SDR6 |
SDR5 |
|||
|
S5 |
S4 |
S3.2 |
S2.5 |
S2 |
|||
|
PN10 |
PN12.5 |
PN16 |
PN20 |
PN25 |
|||
|
OD(mm) |
ND(inch) |
t(10Bar)mm |
t(12.5Bar)mm |
t(16Bar)mm |
t(20Bar)mm |
t(25Bar)mm |
|
|
20 |
1/2" |
1.9 |
2.3 |
2.8 |
2.8(3.4) |
3.4(4.1) |
|
|
25 |
3/4" |
2.3 |
2.8 |
3.5 |
3.5(4.2) |
4.2(5.1) |
|
| 32 |
1" |
2.9 |
3.0(3.6) |
3.6(4.4) |
4.4(5.4) |
4.4(6.5) |
|
| 40 |
1 1/4" |
3.7 |
3.7(4.5) |
4.5(5.5) |
5.5(6.7) |
8.1 |
|
| 50 |
1 1/2" |
4.6 |
4.6(5.6) |
5.6(6.9) |
6.9(8.3) |
10.1 |
|
| 63 |
2" |
5.8 |
5.8(7.1) |
7.1(8.6) |
8.7(10.5) |
12.7 |
|
| 75 |
2 1/2" |
6.8 |
6.9(8.4) |
8.4(10.3) |
10.3(12.5) |
15.1 |
|
| 90 |
3" |
8.2 |
8.2(10.1) |
10.1(12.3) |
12.3(15) |
18.1 |
|
| 110 |
4" |
10.0 |
10(12.3) |
12.1(15.1) |
15.1(18.3) |
22.1 | |
| 125 |
5" |
11.4 |
14 | 17.1 |
20.8 |
22.1 | |
