Reducing Tee Pipe Fittings for Water System

Eastboom®’s HDPE 90-degree reducing tees are a great choice for making pipe connections work efficiently. They work well in water supply systems, drainage systems, and cable protection systems.As a top manufacturer and supplier of HDPE 90-degree reducing tees in China, we provide fittings that meet different needs. These needs come from municipal pipe systems, industrial pipe systems, and residential pipe systems.

Send Inquiry

Product Description

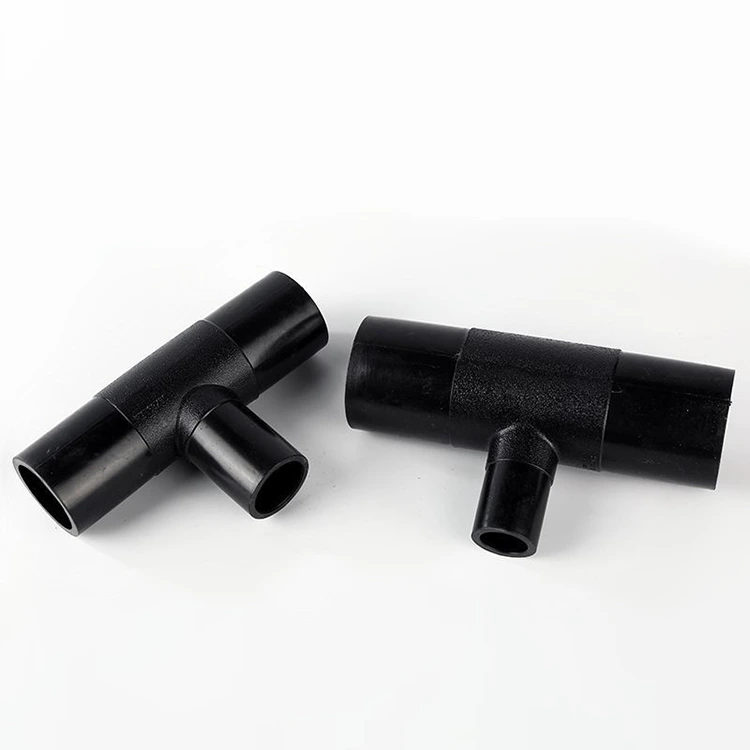

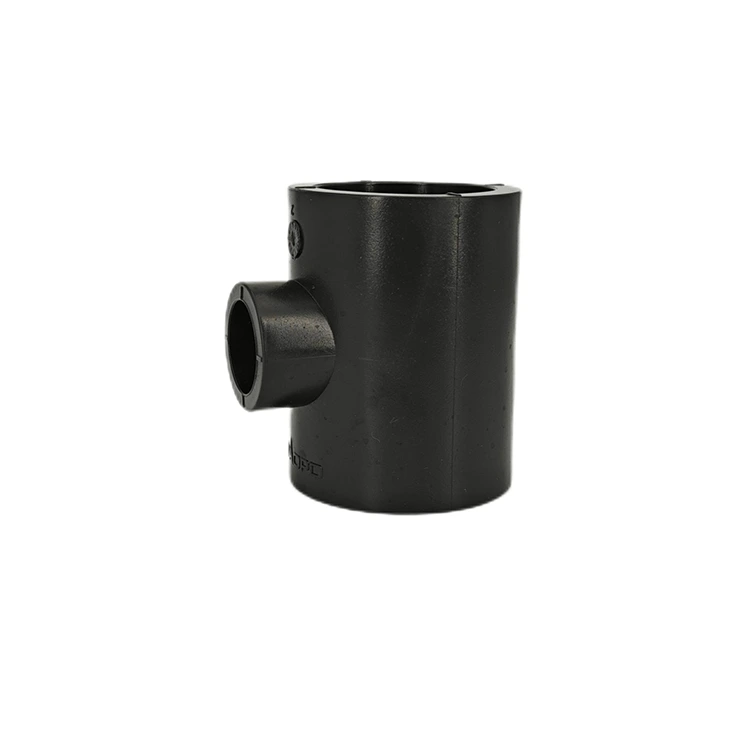

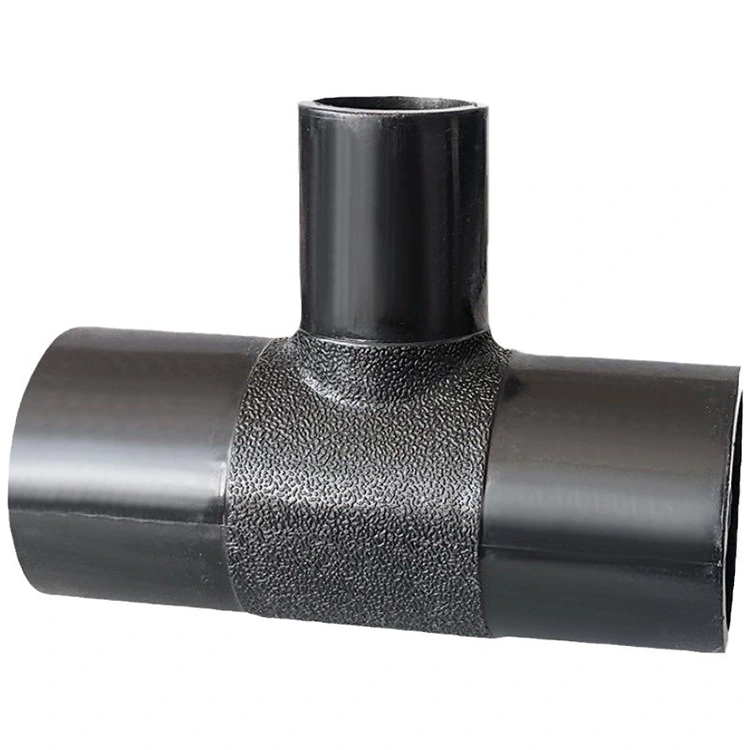

Eastboom® manufactures the HDPE 90 Degree Reduction Tee, a high-strength pipe fitting made from PE100 that meets global standards such as CE, ISO and WRAS. Our street design can be used to connect a larger main pipe to two smaller branch pipes at a right angle and is well suited for municipal and industrial projects. The HDPE 90-degree reducing tees we provide are suitable for several uses. They can be used in potable water supply systems, storm water drainage systems, electrical piping systems, and agricultural irrigation systems.

Feature And Application

Durable HDPE Material: This fitting uses HDPE as its material, and HDPE is both strong and long-lasting. This long-lasting property enables the fitting to perform well over a long period.

Precision Molded: Ensures tight sealing and dimensional accuracy Flexible

Custom Options: OEM service with wide size selection

Certified Safe: CE, ISO, and WRAS compliant for potable water use

Fast Installation: Compatible with butt and electrofusion equipment

Warranty: 10 years of performance assurance

Applications：

Drinking Water Networks: Certified for safety and hygiene

Municipal Drainage Systems: Handles stormwater and wastewater

Cable and Conduit Protection: Electrical and telecom infrastructure

Agricultural Irrigation: Distributes water efficiently to various zones

Industrial Piping Systems: For chemical, gas, and fluid transport

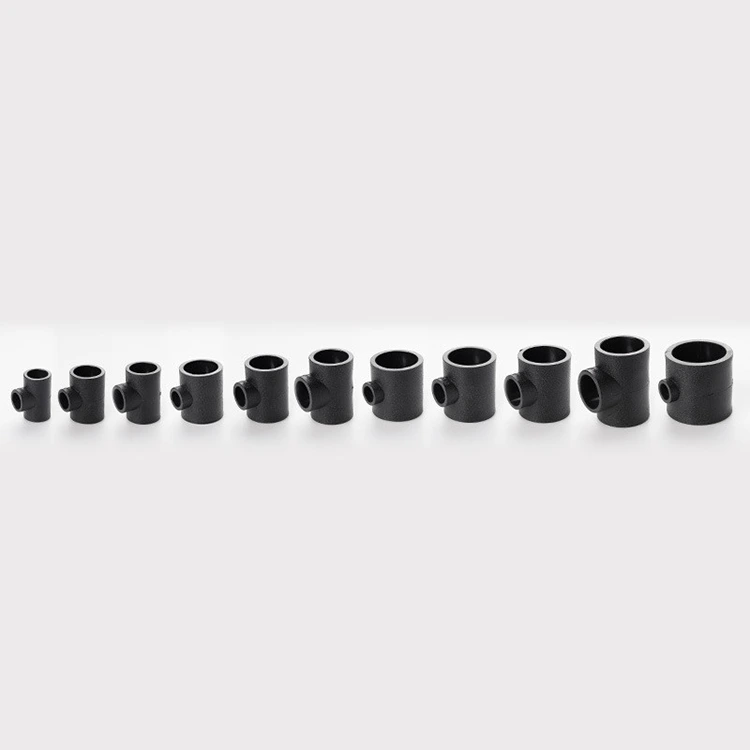

Parameter (Specification)

d*d(mm)	50x20	50x25	50x32	50x40	63x32	63x40	63x50	75x32	75x40
75x50	75x63	90x50	90x63	90x75	110x63	110x75	110x90	125x63	125x75
125x90	125x110	140x75	140x90	140x110	140x125	160x63	160x75	160x90	160x110
160x125	160x140	180x110	180x125	180x140	180x160	200x63	200x90	200x110	200x125
200x140	200x160	200x180	225x75	225x90	225x110	225x125	225x140	225x160	225x180
225x200	250x200	250x225	280x225	280x250	315x110	315x160	315x200	315x225	315x250
315x280	355x250	355x315

SDR17	3”x2”	4”x2”	4”x3”	6”x2”	6”x3”	6”x4”	8”x2”	8”x3”
8”x4”	8”x6”	10”x4”	10”x6”	10”x8”	12”x6”	12”x8”	12”x10”

SDR11	3”x2”	4”x2”	4”x3”	6”x2”	6”x3”	6”x4”	8”x2”	8”x3”
8”x4”	8”x6”	10”x4”	10”x6”	10”x8”	12”x6”	12”x8”	12”x10”
