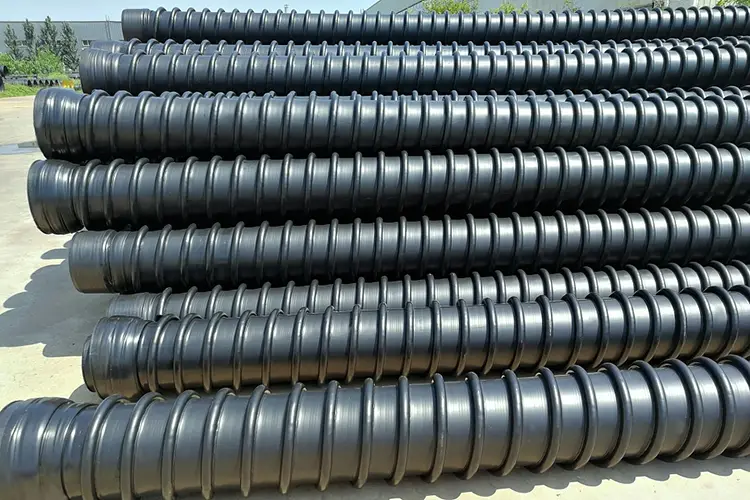

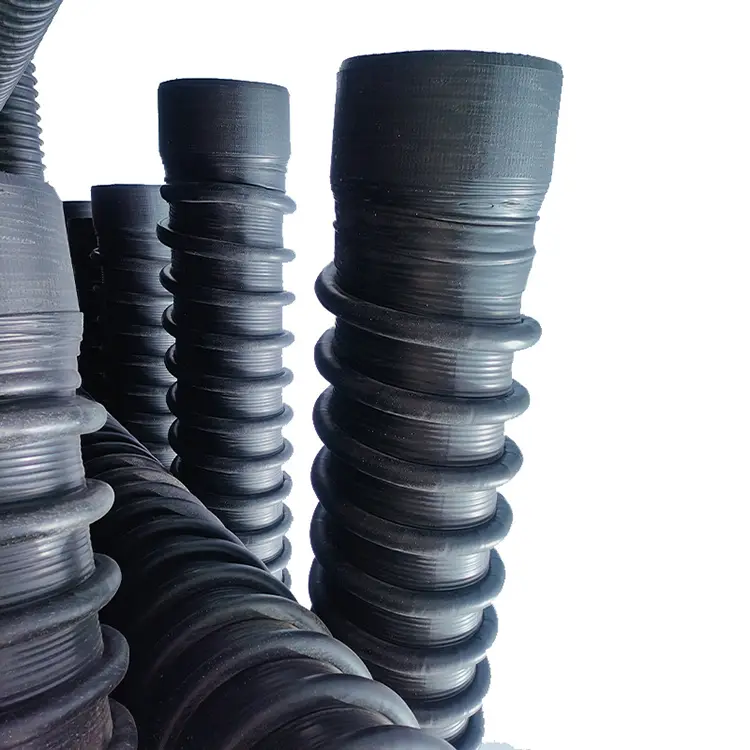

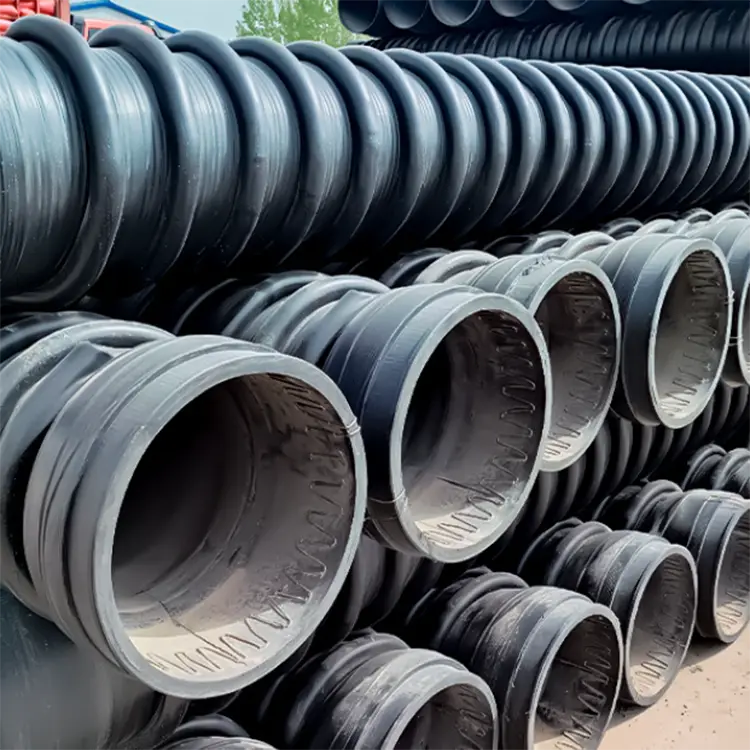

HDPE Twisted Reinforced Carat Pipe

East Boom as a China HDPE twisted reinforced carat pipe factory, we specialize in wholesale dual wall corrugated drain pipe for global drainage projects.

Send Inquiry

Product Description

Introduction

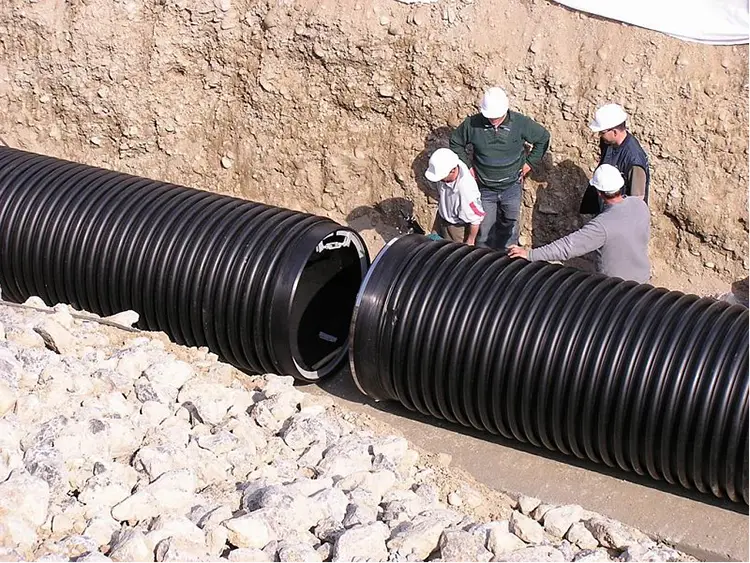

By combining a PE inner layer with spirally wound PP reinforcement, our HDPE Spiral Reinforced Carat Pipe delivers exceptional ring stiffness while maintaining flexibility to withstand ground settlement. It widely used in municipal, industrial, and agricultural projects.Under normal conditions,our dual wall corrugated drain pipe’s service life exceeding 50 years,available in diameters ranging from DN150 to DN3000.Best-Selling Sizes：450mm hdpe pipe,900mm hdpe pipe，1200mm hdpe pipe

HDPE Twisted Reinforced Carat Pipe‌‌

Parameter (Specification)

DN/ID	Min.Average Inner Diameter	Min Inner wall thickness
		Type A	Type B	Type C
		Type A	Type B	Type C
mm	mm	mm	mm	mm
150	145	1	1.3	1.3
200	195	1.1	1.5	1.5
250	245	1.5	1.8	1.8
300	294	1.7	2	2
400	392	2.3	2.5	2.5
450	441	2.8	2.8	2.8
500	490	3.0	3	3
600	588	3.5	3.5	3.5
700	673	4.1	4	4
800	785	4.5	4.5	4.5
900	885	5.0	5	5
1000	985	5.0	5	5
1100	1085	5.0	5	5
1200	1185	5.0	5	5
1300	1285	6.0	5	5
1400	1385	6.0	5	5
1500	1485	6.0	5	-
1600	1585	6.0	5.5	-
1700	1685	6.0	5.5	-
1800	1785	6.0	6	-
1900	1885	6.0	6	-
2000	1985	6.0	6	-
2100	2085	6.0	6	-
2200	2185	7.0	7	-
2300	2285	8.0	8	-
2400	2385	9.0	9	-
2500	2485	10.0	10	-
2600	2585	-	10	-
2700	2680	-	10	-
2800	2785	-	10	-
2900	2885	-	10	-
3000	2985	-	10	-

Feature And Application

Feature:

1.Our dwc pipe for sewage have long-lasting durability,service life of up to 50 years.

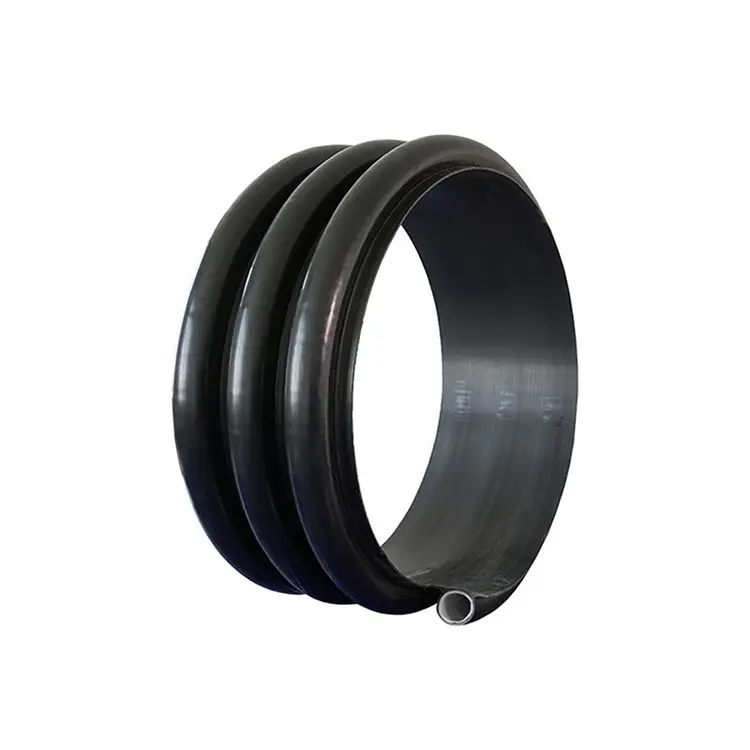

2.PE inner layer with spirally wound PP outer layer combined PE and PP layers for extra strength, achieving ring stiffness up to SN20,enable high compression and impact resistance.

3.Smooth inner wall minimizes friction loss, increasing flow capacity by 30% compared to reinforced concrete pipes of the same diameter.

4.Our HDPE twisted reinforced carat pipes have a good resistance to differential settlement.

Flexible design adapts to uneven ground conditions and reduces ground settlement damage.

5.Our HDPE twisted reinforced carat pipes are resistant to aging, acids, alkalis, salts, and other corrosive substances.

6.Electrofusion socket joints ensure quick installation and 0 leakage.

7.Our dwc pipe have a wide size range ,available in diameters from DN200 to DN3000.
