Polyethylene Pipe Standard Factory HDPE Pipe
EastBoom® is a professional Polyethylene Pipe Standard Factory HDPE Pipe and wholesale supplier, offering bulk plastic pipes with reliable quality. Our parent company in China has been in operation for 23 years. East Boom is our first step into the global market. Our primary export markets are in Southeast Asia, the Middle East, and South America, among others.
Send Inquiry
Product Description

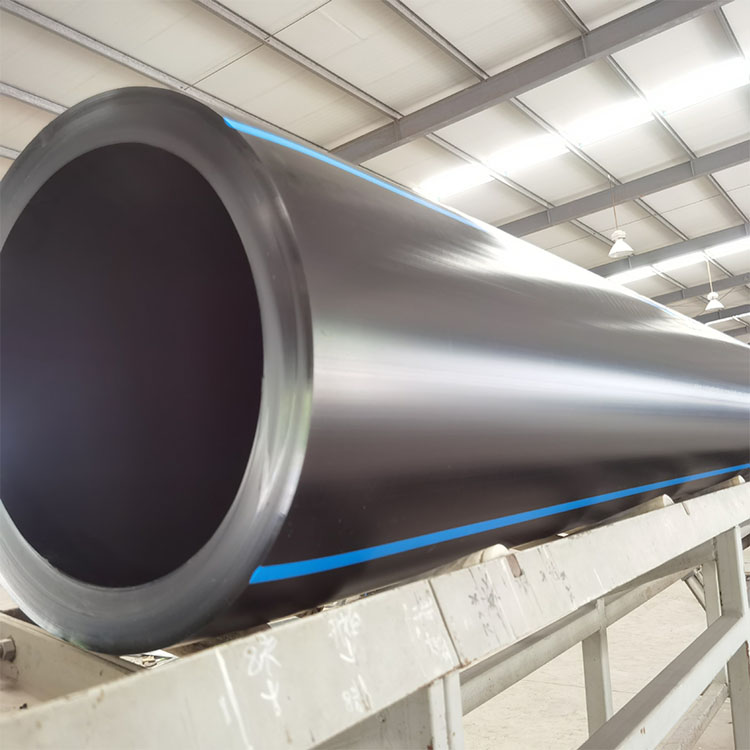

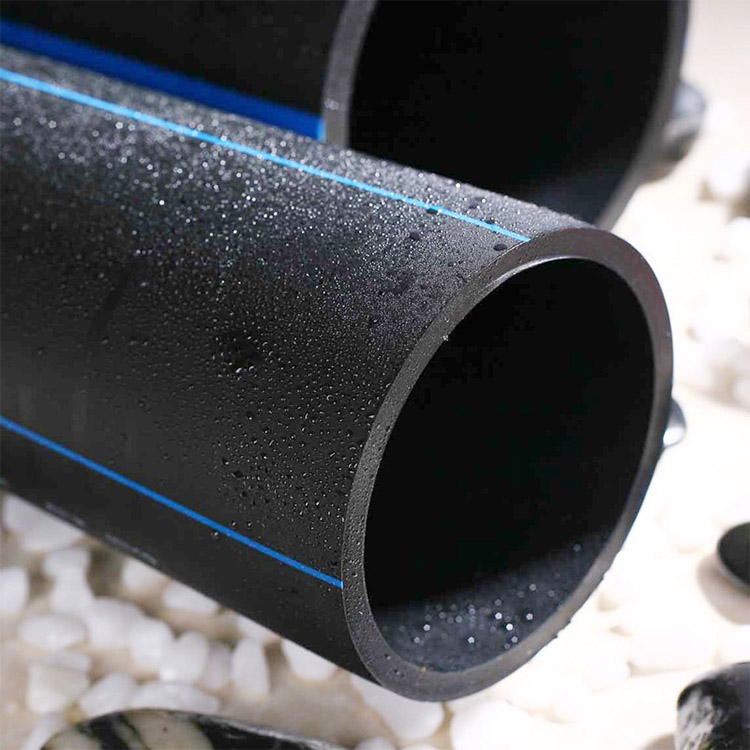

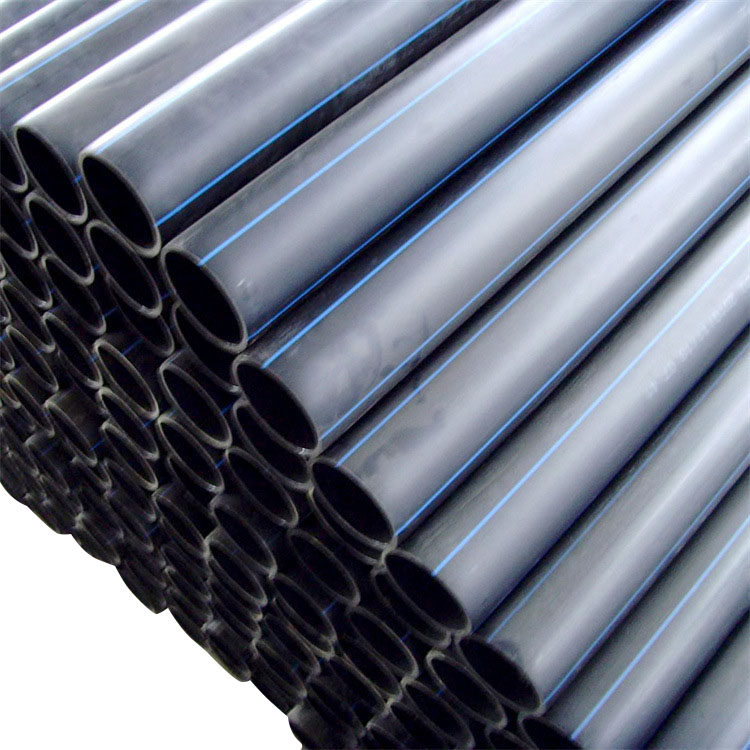

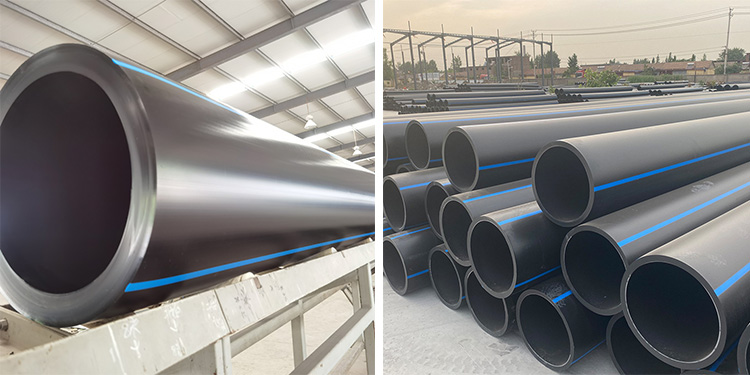

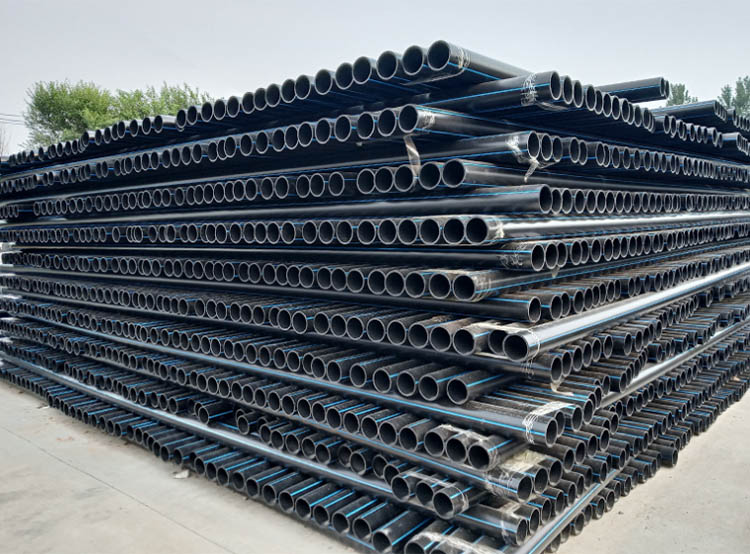

HDPE Pipe is leak-free, tough, flexible, fully-restrained, and cost competitive. Plus, it's great for trenchless applications. Any one of these attributes makes it a winner, but combined, these features make HDPE pipe the responsible infrastructure choice of the future. HDPE pipe is made of high density polyethylene resin.The product's physical properties make it applicable to open-trench, horizontal directional drilling,pipe-bursting and slip-lining installations. It can be manufactured with the color striping to identify application, such as blue stripe for potable water, yellow stripe for gas applications and red stripe for mining or cable protection applications.
Feature And Application
Feature:
1.Reliable Connections:
HDPE Pipe use heat fusion jointing system with low notch sensitivity; joint strength exceeds pipe body strength.
2.Excellent Low-Temperature Impact Resistance:
Brittle point below 0°C; maximum operating temperature 40°C; design pressure 8MPa for various climates.
3.Long Service Life (>50 years):
High crack resistance, superior shear strength and elongation at break.
4.Chemical Corrosion Resistance:
It can endure the damaging effects of acidic and alkaline substances, as well as a variety of chemical solutions.
5.Various Joint Availability:
butt fusion joint and electrofusion joint available to make sure the identity of interfaces.
structure.
6.Excellent workability:
be convenient for transporting and installing because of light weight.
7.Longevity: more than 50 years under proper use.
8.Low Flow Resistance:
The pipe has a smooth inner surface, with a roughness coefficient of only 0.009. This smoothness results in friction loss that is 1/200 of that in steel pipes, effectively minimizing pressure loss and preventing the buildup of scale inside the pipe.
Applications:
1.Water Supply:
HDPE Pipe is ideal for urban systems with safety, hygiene and cost benefits.
2.Sewerage and drainage
Corrosion-resistant for acid/alkali/salt solutions with low maintenance,suc as food & chemical Industries.
3.Slurry & Mineral Transport:
4x more abrasion-resistant than steel for mining/fly ash/dredging.
4.Landscape Irrigation:
Cost-effective watering solution.
Product parameters
|
Pressure Rating |
0.4MPa |
0.5MPa |
0.6MPa |
0.8MPa |
1.0MPa |
1.25MPa |
1.6MPa |
2.0MPa |
2.5MPa |
|
Outside Diameter |
PN4 |
PN5 |
PN6 |
PN8 |
PN10 |
PN12.5 |
PN16 |
PN20 |
PN25 |
|
SDR41 |
SDR33 |
SDR26 |
SDR21 |
SDR17 |
SDR13.6 |
SDR11 |
SDR9 |
SDR7.4 |
|
|
Wall Thickness(en) |
|||||||||
|
20 |
|
|
|
|
|
|
2.0 |
2.3 | 3.0 |
|
25 |
|
|
|
|
|
2.0 |
2.3 |
3.0 |
3.5 |
|
32 |
|
|
|
|
2.0 |
2.4 |
3.0 |
3.6 |
4.4 |
|
40 |
|
|
|
2.0 |
2.4 |
3.0 |
3.7 |
4.5 |
5.5 |
|
50 |
|
|
2.0 |
2.4 |
3.0 |
3.7 |
4.6 |
5.6 |
6.9 |
|
63 |
|
|
2.5 |
3.0 |
3.8 |
4.7 |
5.8 |
7.1 |
8.6 |
|
75 |
|
|
2.9 |
3.6 |
4.5 |
5.6 |
6.8 |
8.4 |
10.3 |
|
90 |
|
|
3.5 |
4.3 |
5.4 |
6.7 |
8.2 |
10.1 |
12.3 |
|
110 |
|
|
4.2 |
5.3 |
6.6 |
8.1 |
10.0 |
12.3 |
15.1 |
|
125 |
|
|
4.8 |
6.0 |
7.4 |
9.2 |
11.4 |
14.0 |
17.1 |
| 140 |
|
|
5.4 |
6.7 |
8.3 |
10.3 |
12.7 |
15.7 |
19.2 |
| 160 |
|
|
6.2 |
7.7 |
9.5 |
11.8 |
14.6 |
17.9 |
21.9 |
| 180 |
|
|
6.9 |
8.6 |
10.7 |
13.3 |
16.4 |
20.1 |
24.6 |
| 200 |
|
|
7.7 |
9.6 |
11.9 |
14.7 |
18.2 |
22.4 |
27.4 |
| 225 |
|
|
8.6 |
10.8 |
13.4 |
16.6 |
20.5 |
25.2 |
30.8 |
| 250 |
|
|
9.6 |
11.9 |
14.8 |
18.4 |
22.7 |
27.9 |
34.2 |
| 280 |
|
|
10.7 |
13.4 |
16.6 |
20.6 |
25.4 |
31.3 |
38.3 |
| 315 |
7.7 |
9.7 |
12.1 |
15.0 |
18.7 |
23.2 |
28.6 |
35.2 |
43.1 |
| 355 | 8.7 |
10.9 |
13.6 |
16.9 |
21.1 |
26.1 |
32.2 |
39.7 |
48.5 |
| 400 | 9.8 |
12.3 |
15.3 |
19.1 |
23.7 |
29.4 |
36.3 |
44.7 |
54.7 |
| 450 |
11.0 |
13.8 |
17.2 |
21.5 |
26.7 |
33.1 |
40.9 |
50.3 |
61.5 |
| 500 |
12.3 |
15.3 |
19.1 |
23.9 |
29.7 |
36.8 |
45.4 |
55.8 |
|
| 560 |
13.7 |
17.2 |
21.4 |
26.7 |
33.2 |
41.2 |
50.8 |
62.5 |
|
| 630 |
15.4 |
19.3 |
24.1 |
30.0 |
37.4 |
46.3 |
57.2 |
70.3 |
|
| 710 |
17.4 |
21.8 |
27.2 |
33.9 |
42.1 |
52.2 |
64.5 |
79.3 |
|
| 800 |
19.6 |
24.5 |
30.6 |
38.1 |
47.4 |
58.8 |
72.6 |
89.3 |
|
| 900 |
22.0 |
27.6 |
34.4 |
42.9 |
53.3 |
66.2 |
81.7 |
|
|
| 1000 |
24.5 |
30.6 |
38.2 |
47.7 |
59.3 |
72.5 |
90.2 |
|
|
| 1200 |
29.4 |
36.7 |
45.9 |
57.2 |
67.9 |
88.2 |
|
|
|
| 1400 |
34.3 |
42.9 |
53.5 |
66.7 |
82.4 |
102.9 |
|
|
|
| 1600 |
39.2 |
49.0 |
61.2 |
76.2 |
94.1 |
117.6 |
|
|
|
